Description

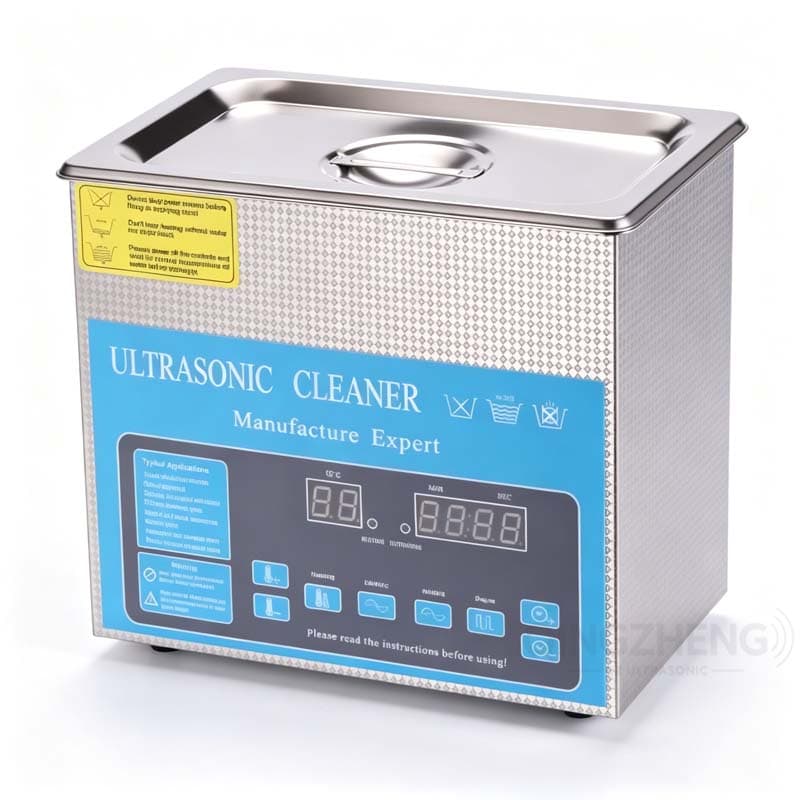

Dual Frequency Adjustable Power Industrial Ultrasonic Cleaner

Introduction

Our industrial dual-frequency ultrasonic cleaning equipment solves the uneven cleaning and surface scratching issues caused by traditional single-frequency cleaners perfectly.
To start with, ordinary single-frequency devices bring uneven washing effects and tend to scratch delicate precision parts easily.
Meanwhile, users can switch working frequencies and adjust output power flexibly to match cleaning requirements from various industries.
Low-frequency mode generates strong cavitation impact to strip thick, stubborn contaminants completely.
On the contrary, high-frequency cleaning penetrates tiny narrow gaps gently without causing damage to fragile accessories.
You can adjust the power level reasonably according to the material of processed parts and the actual degree of surface contamination.

Core Advantages

Switchable Dual Frequency

Two alternative frequency modes take charge of heavy-duty degreasing and gentle precision cleaning respectively.
Furthermore, this dual-mode structure effectively eliminates internal unclean blind zones inside the cleaning tank.

Adjustable Power

High-power operation quickly clears heavy oil sludge and surface oxide layers.
In comparison, low-power output provides effective protection and prevents scratches on high-precision fragile components.

Anti-Corrosion Stainless Steel Tank

You are free to select 304 or 316 stainless steel cleaning tanks as required.
This tank material resists erosion from acid, alkali and conventional cleaning solvents, supporting stable long-hour continuous running.

Digital Control Panel

The intelligent panel displays running time, working power and operating frequency in real time.
Besides, the optional heating module can greatly elevate overall cleaning efficiency.
Even new operators can grasp simple operations quickly to finish large-scale batch production.

360° Omni-Directional Ultrasonic Cleaning

Ultrasonic energy fully covers blind holes, narrow slits and irregular curved surfaces.
Manual scrubbing is no longer necessary, so secondary surface abrasion can be avoided thoroughly.

Application Fields

• Industrial use: Hardware fittings, bearings, valves, machined components | Remove residual cutting fluid, rust and oil stains
• Laboratory use: Experimental glassware and high-precision testing instruments
• Jewelry & Watch industry: Valuable ornaments and miniature internal watch assemblies
• Electronics industry: PCBs, wiring connectors and tiny semiconductor components

Product Strengths

Frequency switching restrains standing waves to deliver even and consistent washing results.
Variable power settings shield precision components from unnecessary surface wear and abrasion.
Intense cavitation force removes tough grime and stubborn dirt within a short time.
Premium built-in ultrasonic transducers guarantee stable performance and extended service life.
This machine is highly suitable for mass batch cleaning work in industrial workshops.

Ordinary single-frequency cleaners cannot adapt to diverse types of accessories flexibly.
Hence, our exclusive dual-frequency design perfectly fulfills your customized precision cleaning demands.

Product Highlights

• Switchable dual frequency structural configuration
• Stepless adjustable ultrasonic working power
• Optimized cavitation layout to greatly reduce cleaning dead zones
• Digital intelligent control equipped with timer; heating function optional
• Anti-corrosion durable stainless steel cleaning tank
• Applicable to manufacturing factories, laboratories, jewelry workshops and electronic equipment maintenance

Model	Power	Heating Power	Ultrasonic Frequency	Capacity	Time Setting	Temperature Setting	Inner Tank Dimension (L*W*H)	Overall Size (L*W*H)	Inner Tank Material	Voltage & Frequency	Lid	Cleaning Basket

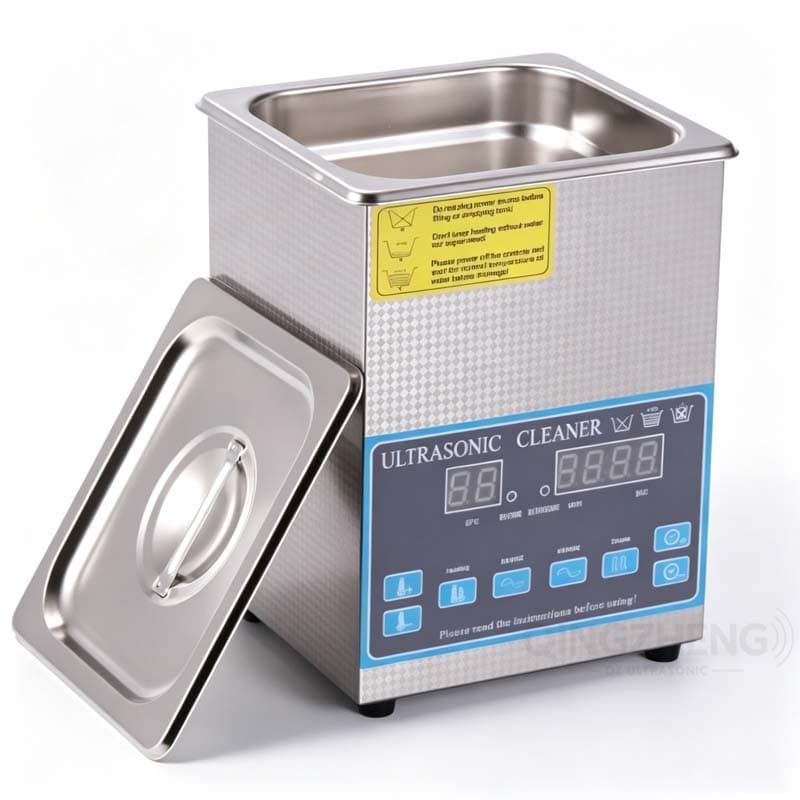

QZ120HTS	30W / 60W Degassing Function	100W	40KHz (28KHz Optional)	2L	0-99 min	0-80℃	150*140*100 mm	175*165*230 mm	304 Stainless Steel	110V/220V 50Hz/60Hz	Standard	Optional
QZ230HTS	60W / 120W Degassing Function	100W	40KHz (28KHz Optional)	3L	0-99 min	0-80℃	240*140*100 mm	265*165*230 mm	304 Stainless Steel	110V/220V 50Hz/60Hz	Standard	Optional
QZ240HTS	60W / 120W Degassing Function	100W	40KHz (28KHz Optional)	4L	0-99 min	0-80℃	300*155*100 mm	330*180*230 mm	304 Stainless Steel	110V/220V 50Hz/60Hz	Standard	Optional
QZ340HTS	60W / 120W Degassing Function	100W	40KHz (28KHz Optional)	4L	0-99 min	0-80℃	300*155*100 mm	330*180*230 mm	304 Stainless Steel	110V/220V 50Hz/60Hz	Standard	Optional
QZ360HTS	90W / 180W Degassing Function	300W	40KHz (28KHz Optional)	6L	0-99 min	0-80℃	300*155*150 mm	380*175*315 mm	304 Stainless Steel	110V/220V 50Hz/60Hz	Standard	Optional

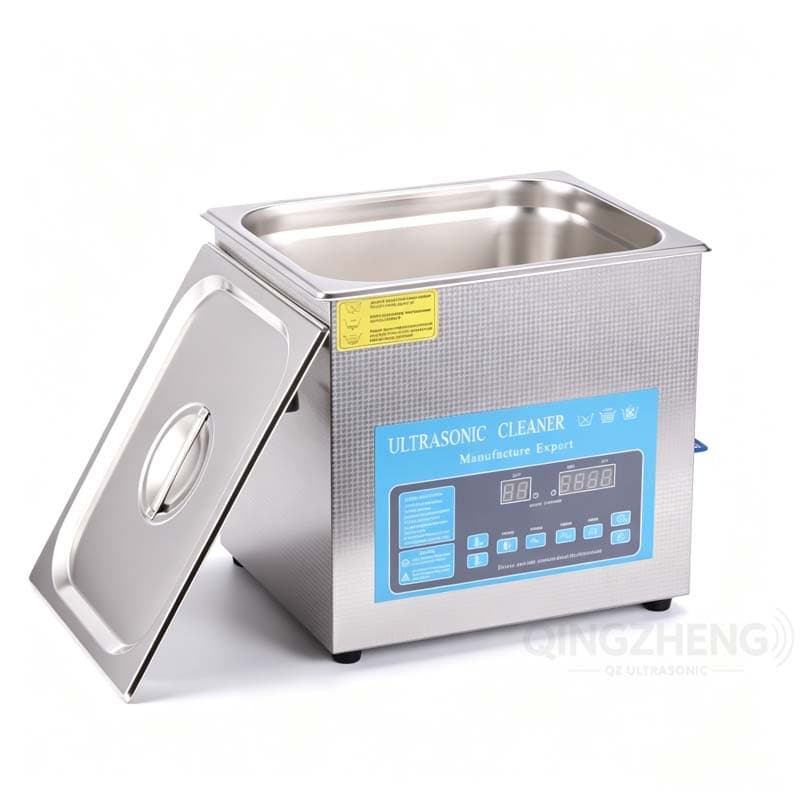

QZ410HTS	120W / 240W Degassing Function	500W	40KHz (28KHz Optional)	10L	0-99 min	0-80℃	300*240*150 mm	380*270*315 mm	304 Stainless Steel	110V/220V 50Hz/60Hz	Standard	Optional

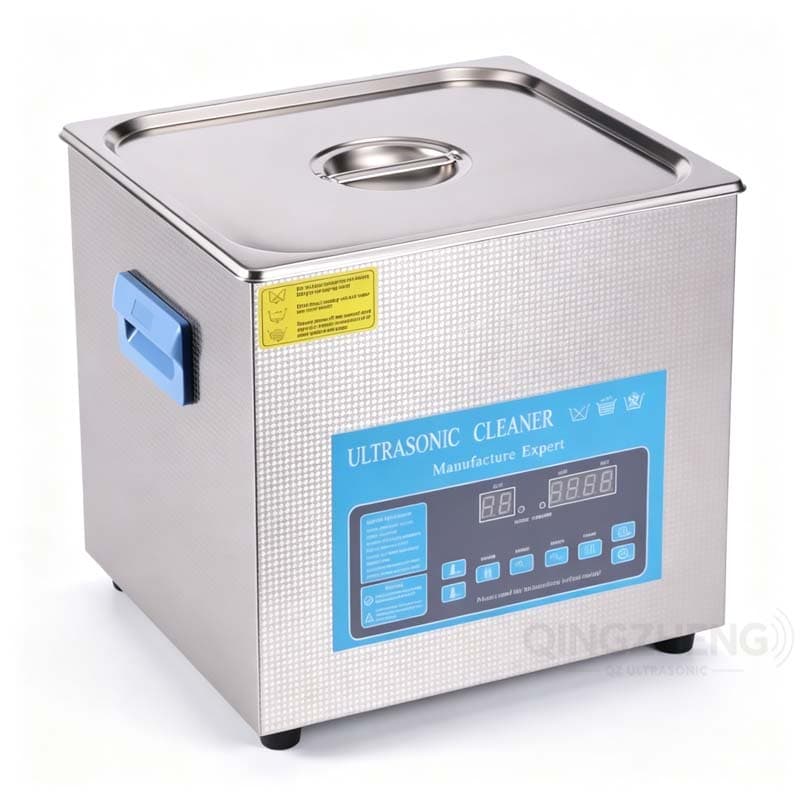

QZ613HTS	180W / 360W Degassing Function	500W	40KHz (28KHz Optional)	15L	0-99 min	0-80℃	330*300*150 mm	390*330*315 mm	304 Stainless Steel	110V/220V 50Hz/60Hz	Standard	Optional
QZ820HTS	240W / 480W Degassing Function	500W	40KHz (28KHz Optional)	22L	0-99 min	0-80℃	500*300*150 mm	580*330*315 mm	304 Stainless Steel	110V/220V 50Hz/60Hz	Standard	Optional

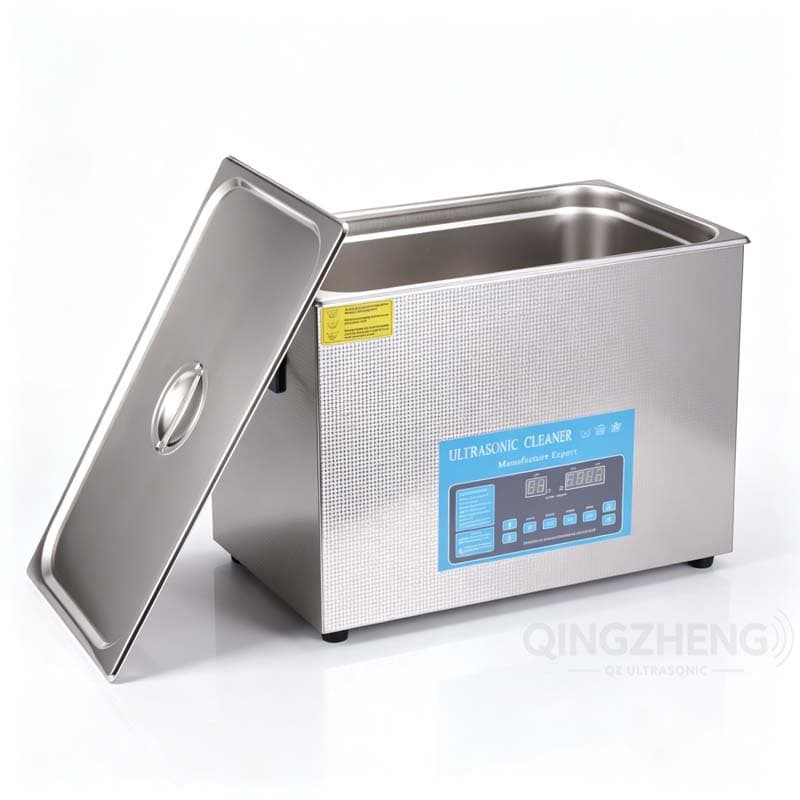

QZ1027HTS	300W / 600W Degassing Function	500W	40KHz (28KHz Optional)	30L	0-99 min	0-80℃	500*300*200 mm	580*330*375 mm	304 Stainless Steel	110V/220V 50Hz/60Hz	Standard	Optional
