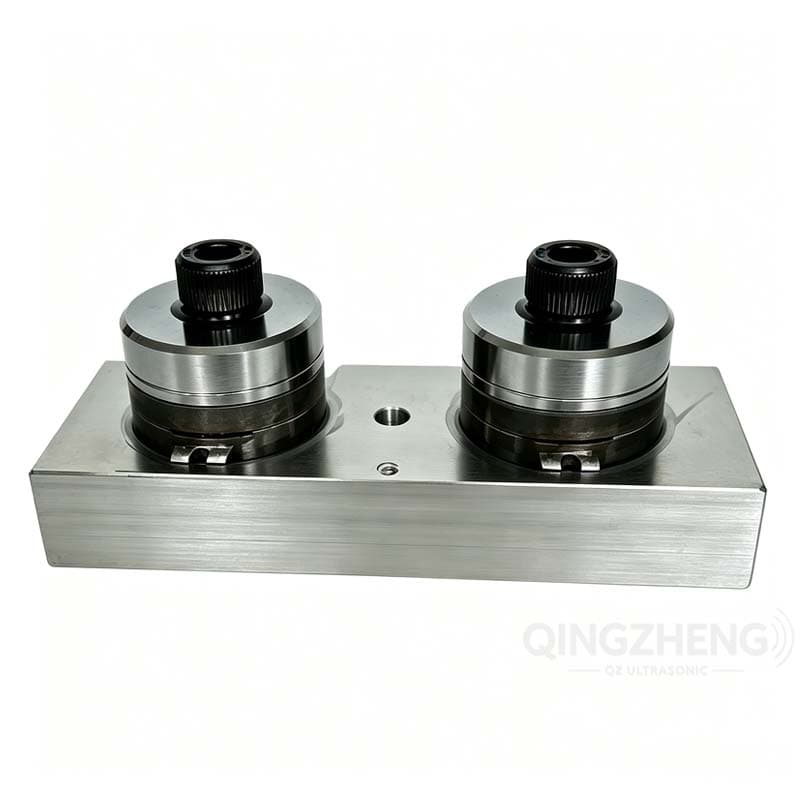

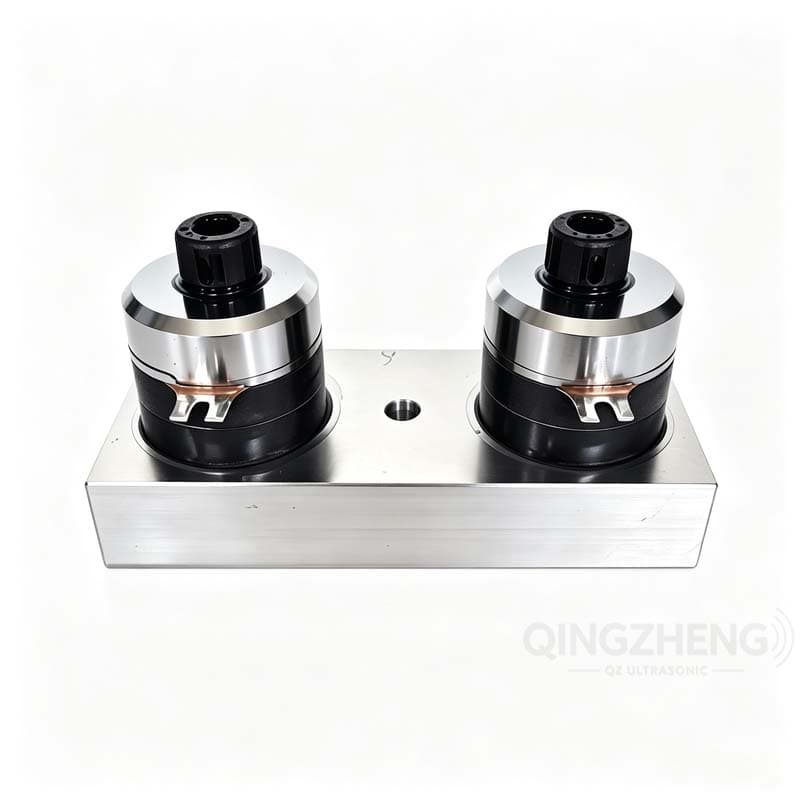

Multifrequency Industrial Piezoelectric Ultrasonic Cleaning Transducer

Description

Core Highlight Features

1. Multi-Frequency Switching Design | No Cleaning Dead Zones

Supports flexible frequency switching during operation to resolve standing wave dead zones of single-frequency ultrasonic vibration. Ultrasonic cavitation bubbles evenly wrap workpiece surfaces, penetrating tiny blind holes, narrow slits and intricate internal structures. Delivers full-area uniform cleaning with no residual uncleaned spots.

2. High Piezoelectric Electro-Acoustic Conversion Efficiency

Premium piezoelectric ceramic chips feature outstanding electro-acoustic conversion efficiency. Electric energy is stably converted into powerful ultrasonic mechanical vibration with low energy loss. Stable cavitation intensity and steady power output enable long continuous operation, cutting overall power consumption of your cleaning equipment.

3. Industrial Sealed Waterproof & Corrosion-Resistant Build

Fully sealed waterproof anti-corrosion structure withstands alkaline cleaners, degreasing solvents and water-based detergents. Reinforced fixing structure prevents fatigue cracking from long-term vibration. Stable round-the-clock operation on automated production lines, long service life and ultra-low failure rate.

4. Non-Abrasive Gentle Precision Cleaning

Cavitation impact removes grease, polishing paste, oxide scales and micro contaminants physically. Zero scraping, scratch or abrasion on precision workpieces, ideal for fragile optical lenses, electronic parts, plated hardware and finished delicate components.

5. Wide Compatibility & Plug-and-Play Installation

Standard universal interface matches most mainstream ultrasonic generators on the market. Compact structure fits cleaning tanks of various sizes; simple wiring and fixing require no major reconstruction of your existing cleaning equipment.

Application Scenarios

Ideal for precision degreasing, descaling and decontamination:

Electronic parts, optical components, machined hardware, auto spare parts, medical fittings, semiconductor small workpieces.

Suitable for mass industrial batch cleaning, laboratory precision washing and high-standard custom ultrasonic cleaning systems.

Model	Name	Mark	Specifications	Remarks
QZ150	Resonance Frequency	Fa	Multifrequency	( 40/54/62/66/92/102/109 ) kHz
QZ150	Resonance Impedance	Zr	≤50Ω	Test Voltage, 10Vrms Temperature 25℃
QZ150	Free Capacitance	Ct	10000pF-11000pF	Test Frequency 1kHz
QZ150	Insulation Resistance	IR	1000MΩ ~+∞	Test Voltage DC1000V,One Minute
QZ150	Test Ambient Temperature	℃	20℃±8℃
QZ150	Test Ambient Humidity	%RH	Below 40%RH
QZ150	Storage Temperature Range	Tst	-5℃~40℃
QZ150	Max. Instantaneous Allowable Power	P(w)	150W	15s Momentary Power Surge Starts
QZ150	Continuous Operating Power	P(c)	150W	Normal Continuous Power Consumption When Clean
QZ150	Gross Weight	Kg	0.745
QZ150	Packing Size	Cm	L*W*H
QZ280	Resonance Frequency	Fa	Multifrequency	( 27/40/53/63/87/94/139 ) kHz
QZ280	Resonance Impedance	Zr	≤50Ω	Test Voltage, 10Vrms Temperature 25℃
QZ280	Free Capacitance	Ct	8000pF-9000pF	Test Frequency 1kHz
QZ280	Insulation Resistance	IR	1000MΩ ~+∞	Test Voltage DC1000V,One Minute
QZ280	Test Ambient Temperature	℃	20℃±8℃
QZ280	Test Ambient Humidity	%RH	Below 40%RH
QZ280	Storage Temperature Range	Tst	-5℃~40℃
QZ280	Max. Instantaneous Allowable Power	P(w)	280W	15s Momentary Power Surge Starts
QZ280	Continuous Operating Power	P(c)	280W	Normal Continuous Power Consumption When Clean
QZ280	Gross Weight	Kg	0.796	30pcs/box 24.54kg/box
QZ280	Packing Size	Cm	L*W*H	46.5*38.5*11.5
